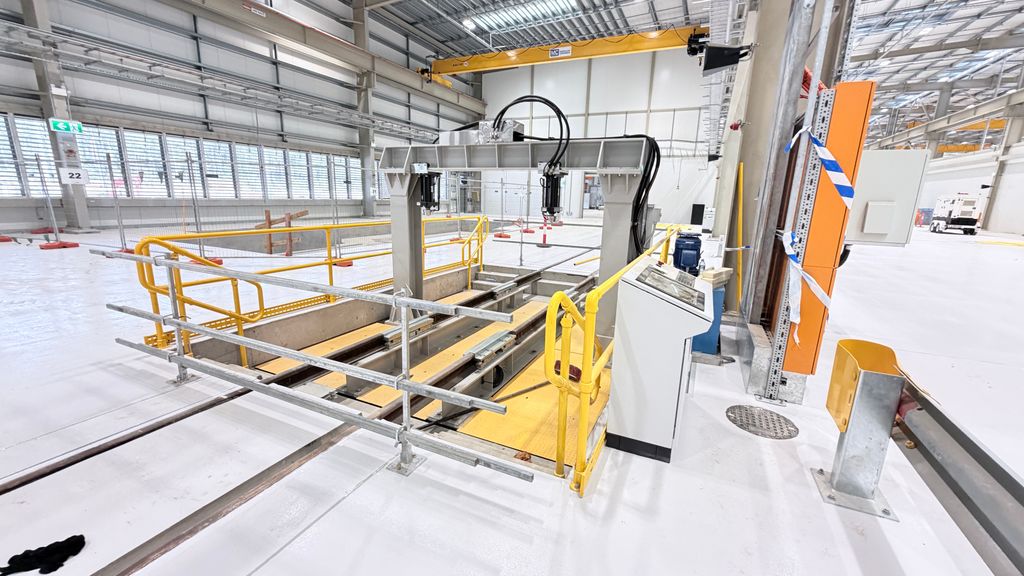

ULTIMATE Bogie Press
Weigh and balance every bogie. Without a permanent press.
The ULTIMATE Bogie Press is a semi-portable test rig that measures individual wheel loads under applied load — so your depot proves every bogie before it leaves the workshop.
Up to 50 tPress capacity
4 or 6Wheel loads
500–1700 mmRail gauge
The problem / Operational challenges
Why operators switch.
Guesswork on wheel loads means uneven wear, derailment risk and failed inspections.
Overseas test rigs mean long lead times and no local support.
The result / Measurable value
Less cost. More certainty.
Save Money
Modular, bolt-together rig costs a fraction of a fixed installation and moves between depots in a standard container or rigid truck.
Save Time
Rapid setup; press points, loads and readouts all run from one control desk with a touchscreen PC.
Reduce Wear & Tear
Balanced bogies mean even wheel loading, longer wheel and rail life, fewer flat spots.
How it works / From load to readout
Precision, step by step.
- 01
Position the bogie on the weigh loadcells.
- 02
Pressing cylinders move to the bogie press points.
- 03
Apply load — single or dual ram, independent or paired.
- 04
Wheel loads and applied load display and store on the PC; print or export.
Technical data / The details that matter
Specifications.
ULTIMATE Bogie Press
| Construction | Enclosed-loop centre section, all pressing loads contained within; bolt-together for transport |
|---|---|
| Rail gauge | 500–1700 mm (confirmed on order; multi-gauge options) |
| Clear space between uprights | Standard 3000 mm (gauge dependent) |
| Twin ram capacity | Up to 30 t per ram (single ram available) |
| Max press structure capacity | Up to 50 t |
| Cylinder centres | Variable up to 2500 mm, stops fitted as required |
| Ram stroke | Standard 250 mm (others on request) |
| Loadcells (rams) | Compression type with mounting brackets |
| Pump | 2-stage electric |
| Control circuits | 220–240 VAC / 24 VDC |
| Wheel loads measured | 4 or 6 |
| Max wheel-load capacity | 20 t |
| Control desk | Push-button press operation, hydraulic pressure and flow controls, built-in PC readouts |
Subject to change without notice. Images for illustration. Speeds and accuracies may vary based on site conditions and vehicle operation.
Accuracies may vary with site conditions and operator.
