Under/overloaded wagons cost revenue, fines and track damage.
Rail / Mining · Weigh-in-motion train weighing
INFINITY
Weigh every wagon at line speed. No stopping, no rail cutting.
INFINITY is Trakblaze's trade-approved load-cell weigh-in-motion system — INFINITY-LS up to 15 km/h for loadouts and plants, INFINITY-HS up to 80 km/h for mainline.
Up to 80 km/hINFINITY-HS
±0.25–0.5%Total train
Up to 50 tPer axle
The problem / Operational challenges
Why operators switch.
Static weighing stops the train and the loadout.
Conventional weighbridges mean rail cutting, welding and long track closures.
The result / Measurable value
Less cost. More certainty.
Save Money
Installed in 1–3 days, often without concrete foundations; approx. 30 minutes to change parts.
Save Time
Real-time axle, bogie and wagon weights, speed and wagon number so the loadout operator fills each wagon right the first time.
Reduce Wear & Tear
Keeps every wagon within limits, protecting track, wheels and bearings.
How it works / From load to readout
Precision, step by step.
- 01

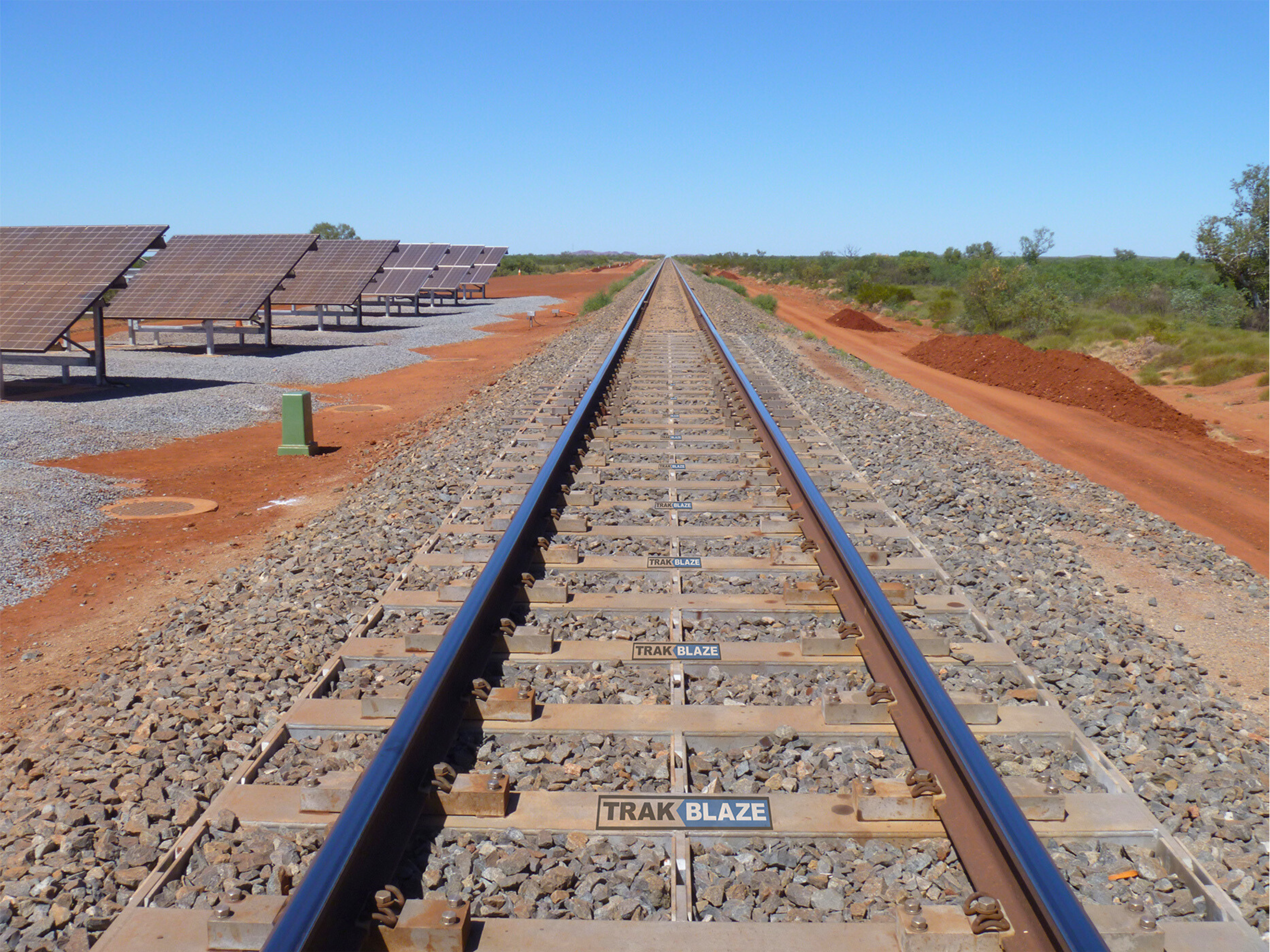

LS: 2 electronic weigh sleepers + 4 dummy sleepers; HS: 6 weigh sleepers + up to 12 dummy sleepers braced into one structure.
- 02
Train passes at speed; load cells capture each axle.
- 03
Control cabinet and PC software compute axle, bogie, wagon and train weights.
- 04
Results stored, printed and accessible from anywhere via the internet.
Technical data / The details that matter
Specifications.
INFINITY
| Capacity | Up to 50 t per axle |
|---|---|
| Achievable accuracy | ±0.5–2% per wagon approx.; ±0.25–0.5% total train approx. |
| Operating temperature | -10 to +70 °C (in-track equipment) |
| Transit speed | Unlimited (approval by rail authority) |
| Voltage | 24 V DC / 110–250 V AC |
| Data transfer | TCP/IP |
| INFINITY-LS | Speed 0.1–15 km/h, install approx. 1–2 days |
| INFINITY-HS | Speed 0.1–80 km/h, install approx. 2–3 days |
Subject to change without notice. Images for illustration. Speeds and accuracies may vary based on site conditions and vehicle operation.
Speeds and accuracies may vary based on site conditions and vehicle operation.
