Overfill and underfill go unmeasured on every trip.
Mining / Road · Haul truck volumetric scanner
TVS
Measure every load in motion. Know what you're actually hauling.

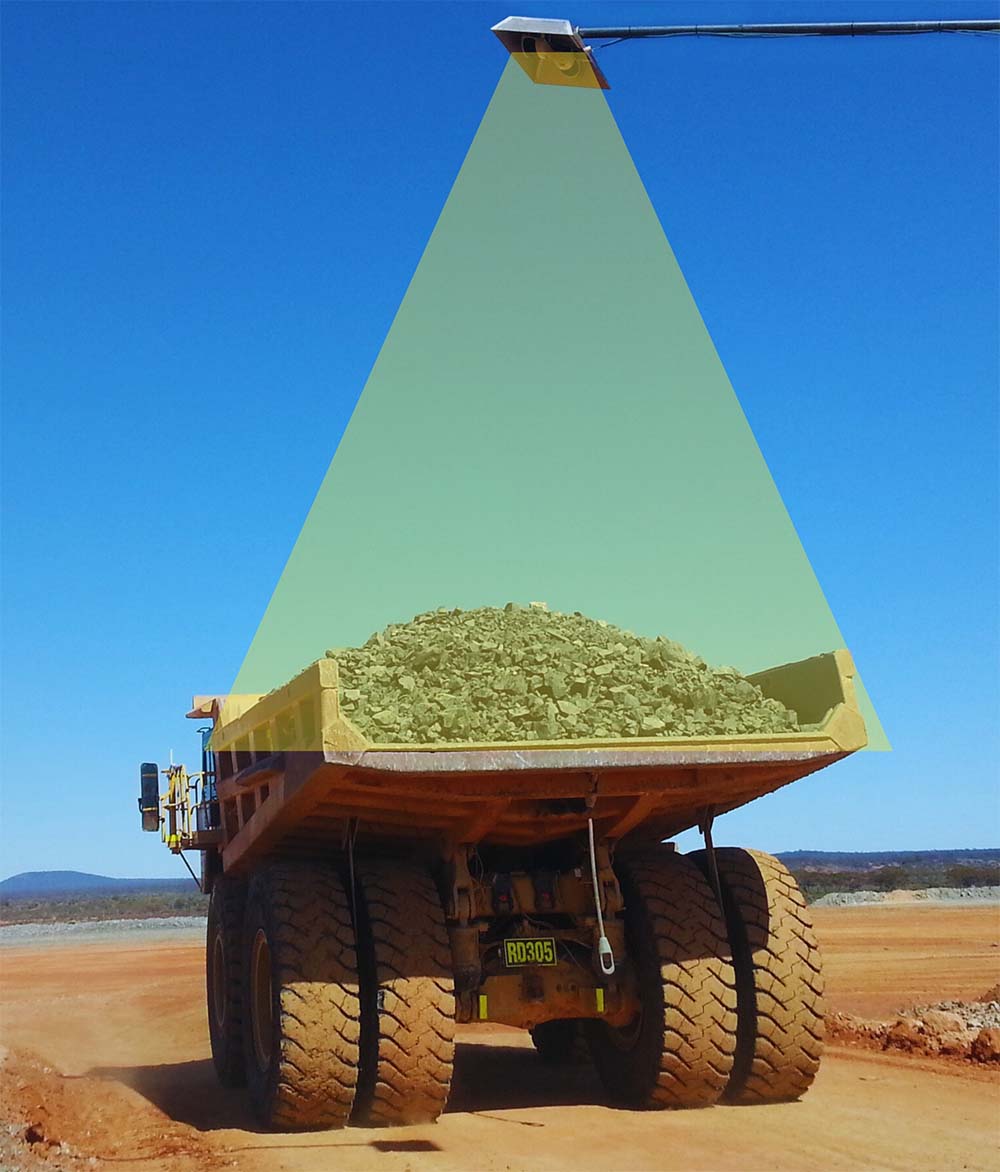

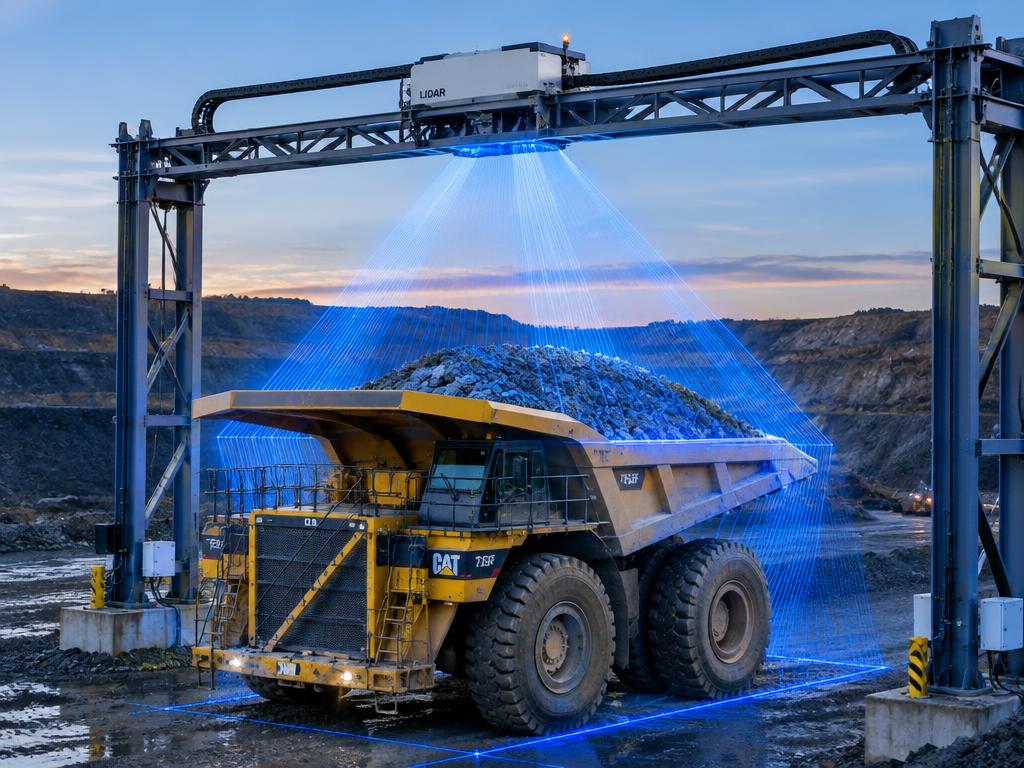

TVS is a rugged LiDAR volumetric scanner that captures the true volume of material on a moving haul truck — and pairs with FORCE™ 1 for complete payload and material-value verification.
270°Field of view
IP67Rugged
Real-time3D point cloud
The problem / Operational challenges
Why operators switch.
Wet material inflates payload weight and misstates product value.
Billing and production reports are built on estimates.
The result / Measurable value
Less cost. More certainty.
Save Money
Accurate billing and payable product value; reduced over/under loading.
Save Time
No stopping; scan in motion with real-time results and a web dashboard.
Reduce Wear & Tear
Right-sized loads cut fuel burn and tyre wear and improve site safety.
How it works / From load to readout
Precision, step by step.
- 01
Empty reference scan captures the truck body profile.
- 02
Loaded scan captures the material in motion.
- 03
Software calculates exact material volume.
- 04
Results to the web dashboard, API and fleet/mine systems — optionally combined with FORCE™ 1 axle weights for density and dry-material estimation.
Technical data / The details that matter
Specifications.
TVS
| LiDAR enclosure | 64 cm (W) x 71 cm (H) x 19 cm (D) |
|---|---|
| Electrical cabinet | 32 cm (W) x 40 cm (H) x 16 cm (D) |
| Field of view | 270° |
| Rating | IP67 |
| Outputs | Real-time volume, 3D point cloud, load distribution, overfill/underfill |
Subject to change without notice. Images for illustration. Speeds and accuracies may vary based on site conditions and vehicle operation.
Speeds and accuracies may vary based on site conditions and vehicle operation.
