Aviation · Portable aircraft weigh pads
AVIATOR
Weight and balance in one session. No jacking, no lost hangar time.

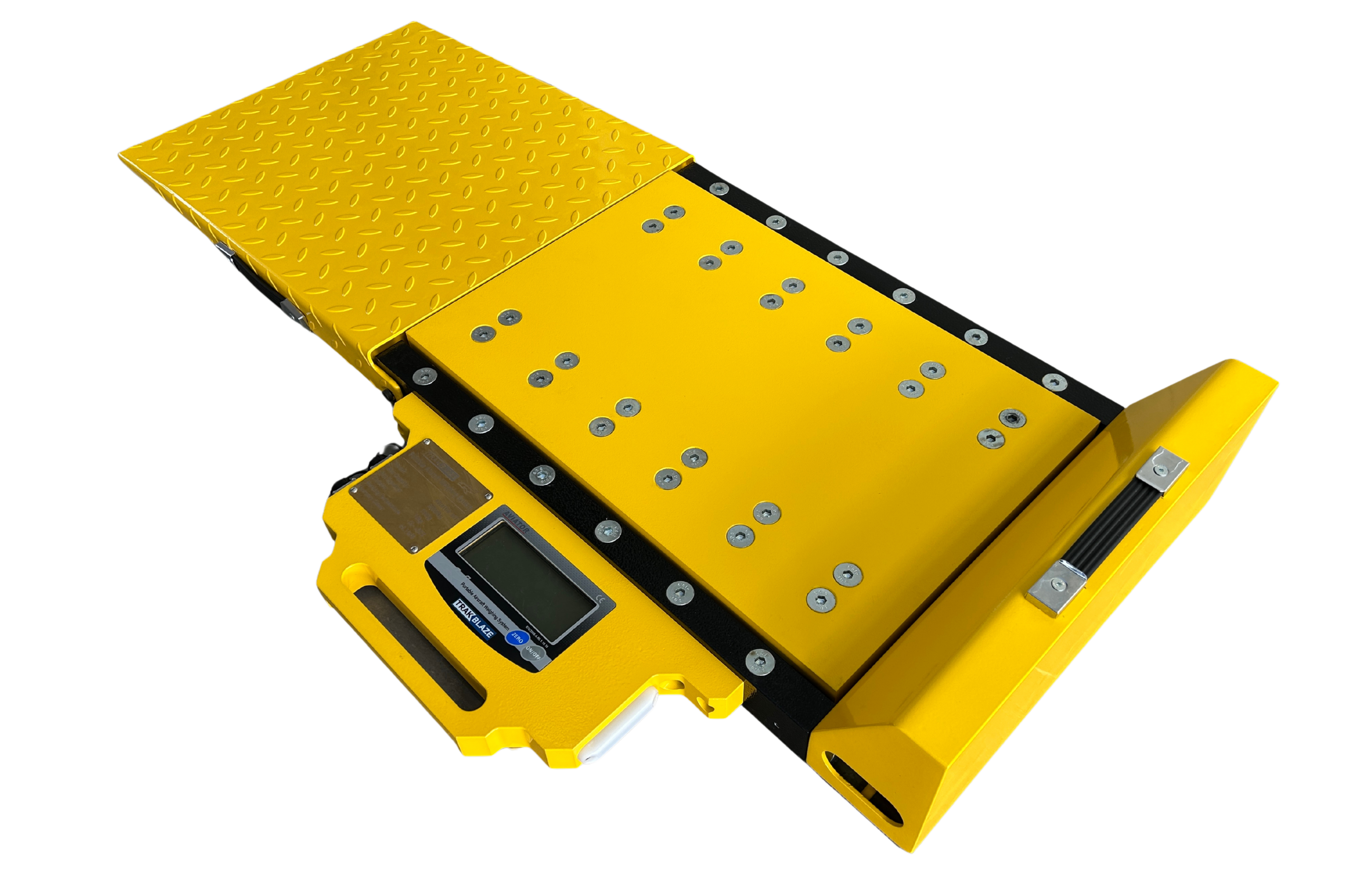

AVIATOR is a family of hi-technology portable aircraft weigh pads — standard 5–30 t and low-profile 10–40 t — built in aviation-grade aluminium for commercial, MRO and military use.
5 t to 40 tPer pad
±0.1%Accuracy
Up to 16Pads on one controller
The problem / Operational challenges
Why operators switch.
Jacking an aircraft to weigh it ties up the hangar for hours.
Cheap pads drift and can't survive ramp conditions.
The result / Measurable value
Less cost. More certainty.
Save Money
Compact, lightweight pads with a towable cart; ideal for airports, MROs and remote airstrips.
Save Time
Plug-and-play; roll on, read, print.
Reduce Wear & Tear
Accurate balance data protects airframe, gear and fuel efficiency.
How it works / From load to readout
Precision, step by step.
- 01
Position pads and ramps under each gear.
- 02
Roll the aircraft on; back stops hold position.
- 03
Up to 16 pads report to the Aircraft M6+ wired/wireless touchscreen controller.
- 04
Weight and balance displayed, printed on the built-in tally roll and exported via USB.
Technical data / The details that matter
Specifications.
AVIATOR Standard
| Model | Weighing area (mm) | Platform (mm) | Ramp (mm) | Pad weight | Capacity | Division | Load cells |
|---|---|---|---|---|---|---|---|
| 5t | 610 x 305 | 620 x 391 x 58 | 590 x 407 | 19.5 kg | 5,000 kg | 1 kg | 6 |
| 10t | 610 x 305 | 620 x 391 x 58 | 590 x 407 | 21 kg | 10,000 kg | 5 kg | 6 |
| 20t | 610 x 534 | 620 x 620 x 58 | 590 x 636 | 33.7 kg | 20,000 kg | 5 kg | 8 |
| 30t | 610 x 534 | 620 x 620 x 58 | 590 x 636 | 43.2 kg | 30,000 kg | 10 kg | 12 |
Subject to change without notice. Images for illustration. Speeds and accuracies may vary based on site conditions and vehicle operation.
AVIATOR Low Profile
| Model | Weighing area (mm) | Platform (mm) | Ramp (mm) | Pad weight | Capacity | Division | Load cells |
|---|---|---|---|---|---|---|---|
| LP10t | 381 x 381 | 406 x 406 x 43 | 430 x 422 | 18.5 kg | 10,000 kg | 5 kg | 6 |
| LP20t | 570 x 381 | 595 x 406 x 50 | 520 x 422 | 24.5 kg | 20,000 kg | 5 kg | 8 |
| LP30t | 762 x 610 | 788 x 635 x 58 | 590 x 651 | 45 kg | 30,000 kg | 10 kg | 12 |
| LP40t | 762 x 610 | 788 x 635 x 58 | 590 x 651 | 52 kg | 40,000 kg | 10 kg | 16 |
Subject to change without notice. Images for illustration. Speeds and accuracies may vary based on site conditions and vehicle operation.
Common specifications
| Accuracy | ±0.1% |
|---|---|
| Working temperature | -10 to +50 °C |
| Working hours | Approx. 120 h |
| Connection | 20 m cable or RFID wireless controller |
| Controller operating temperature | 0 to +40 °C |
Subject to change without notice. Images for illustration. Speeds and accuracies may vary based on site conditions and vehicle operation.
Overall performance may be influenced by graduation size, capacity and calibration parameters.
